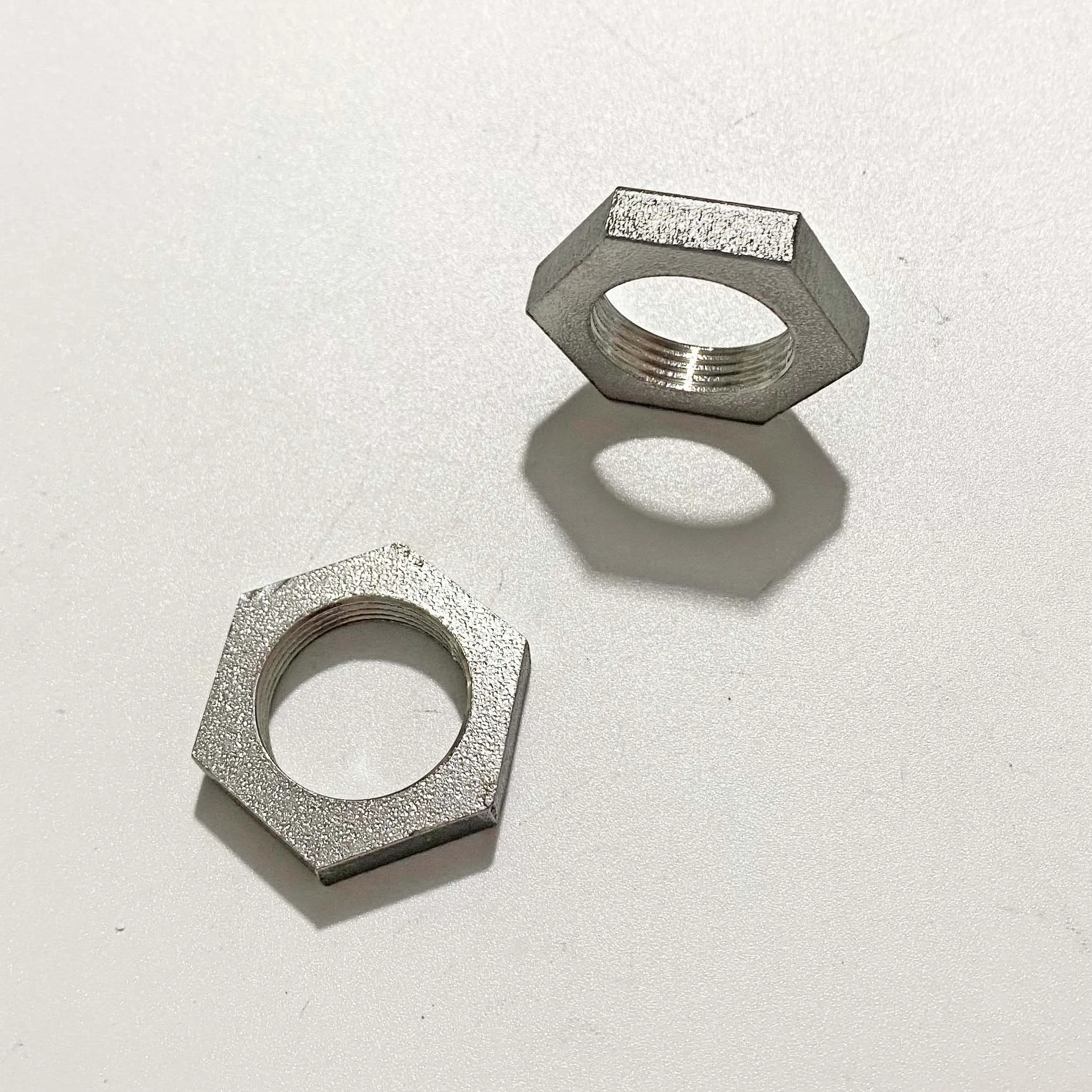

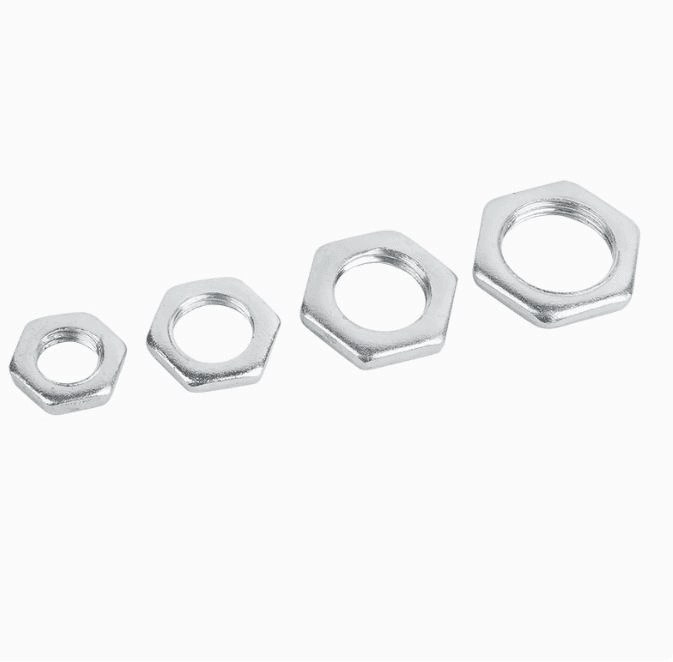

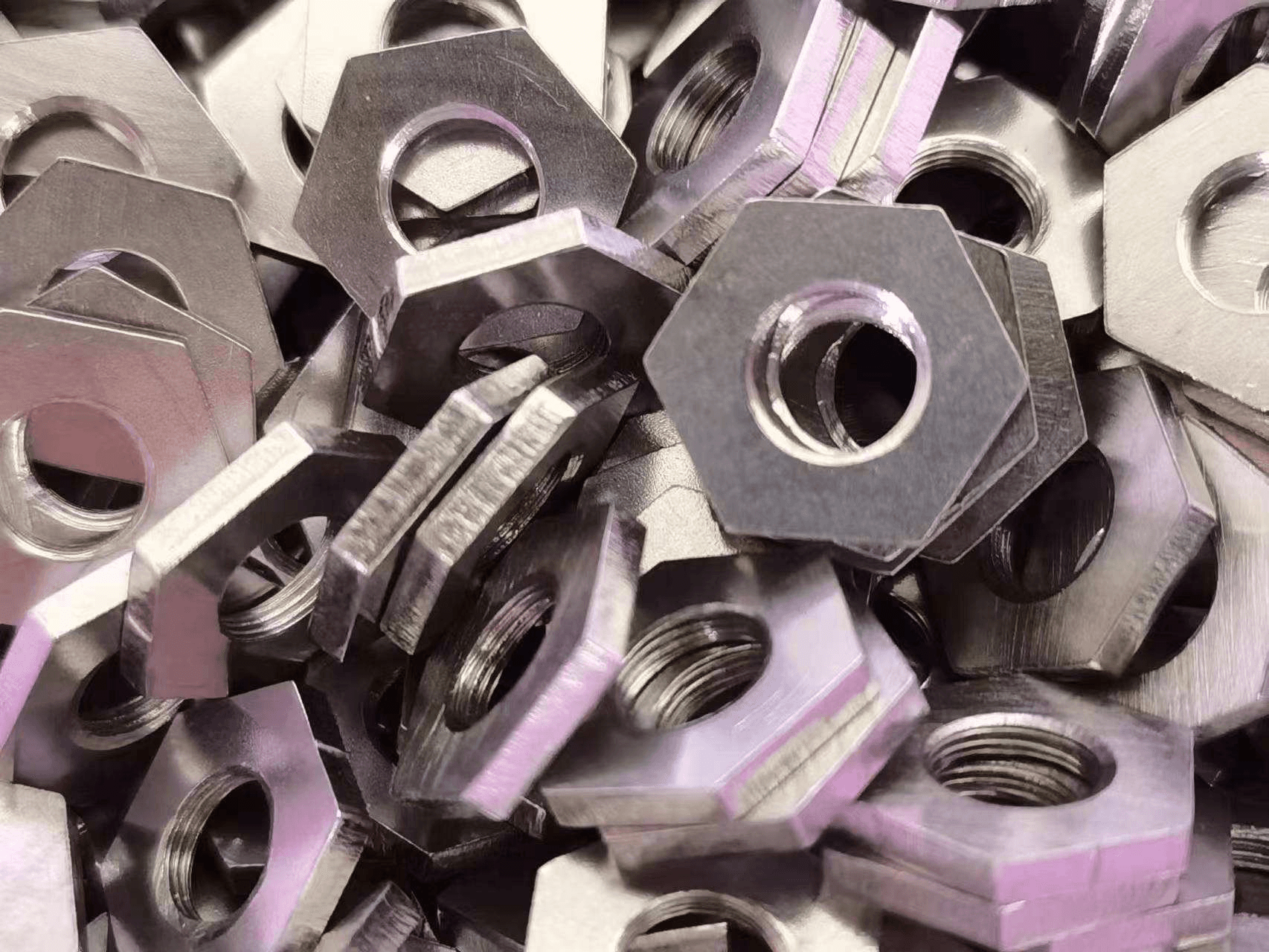

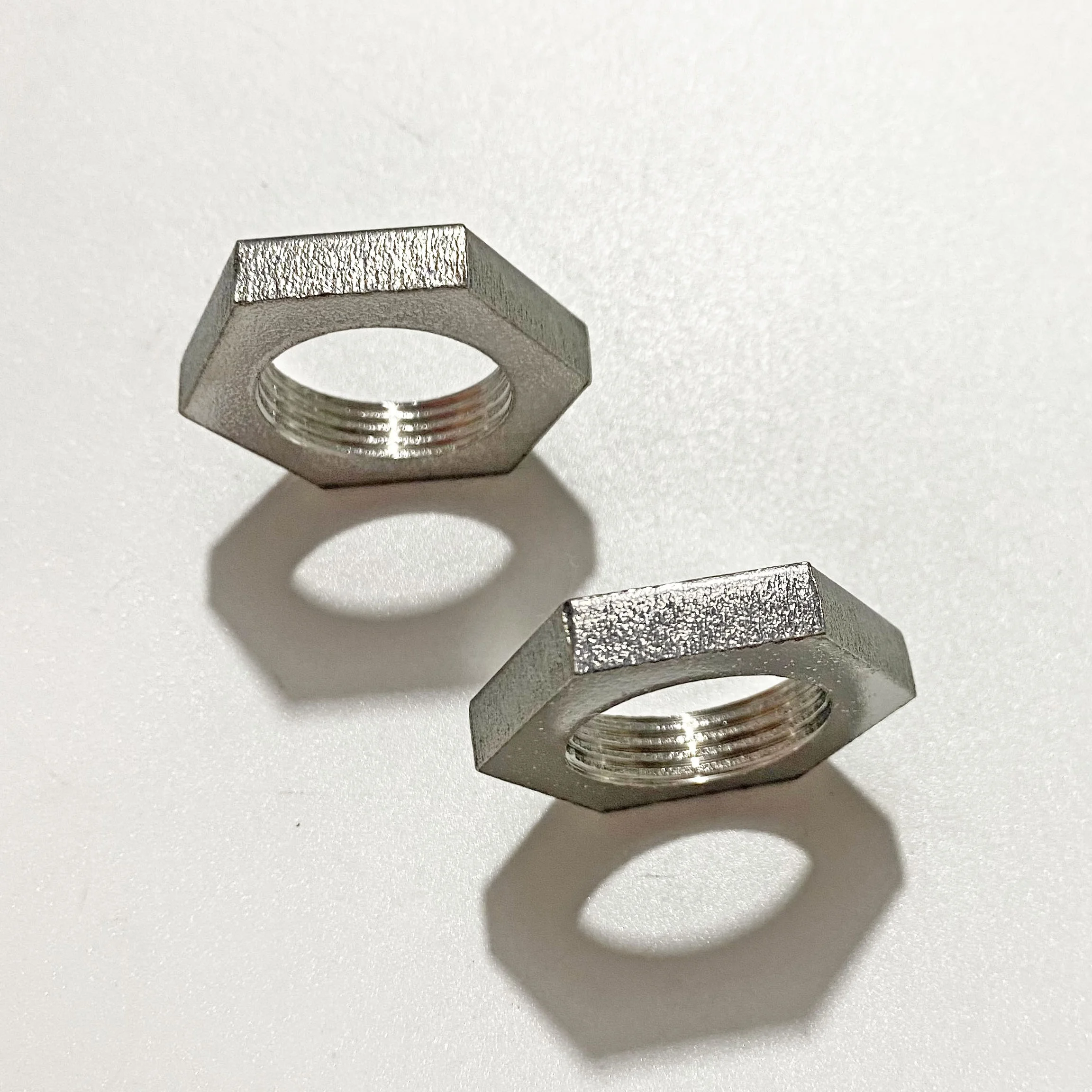

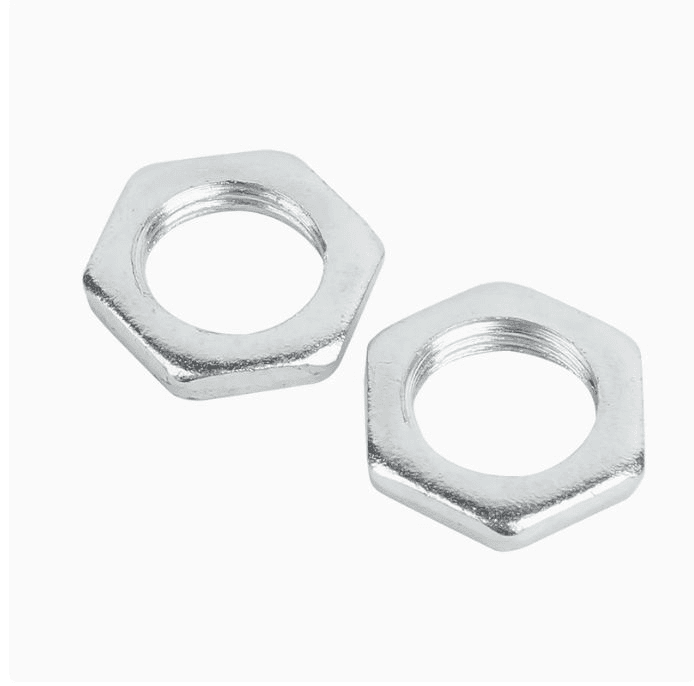

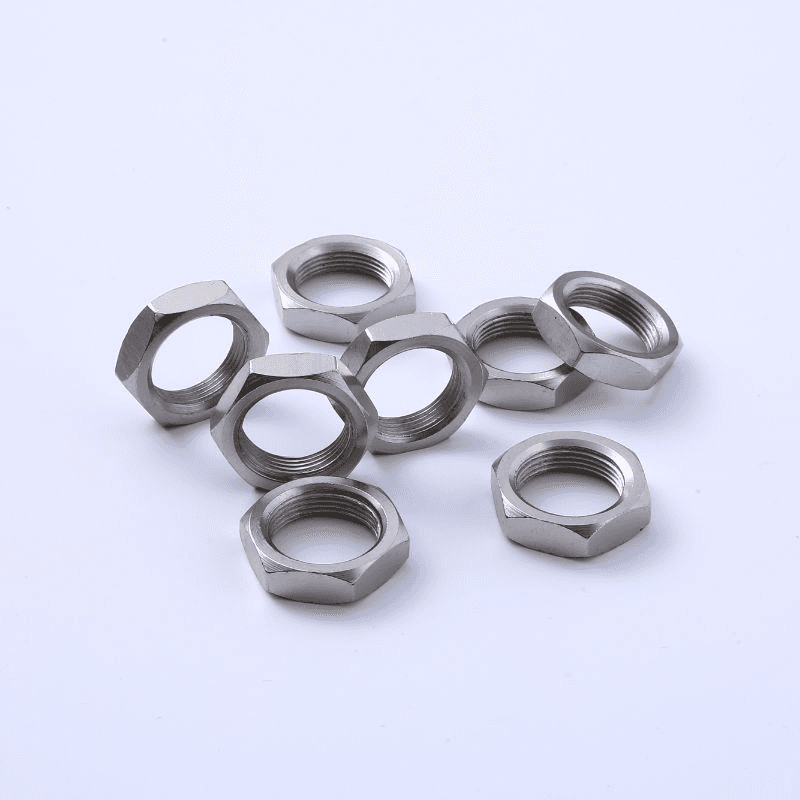

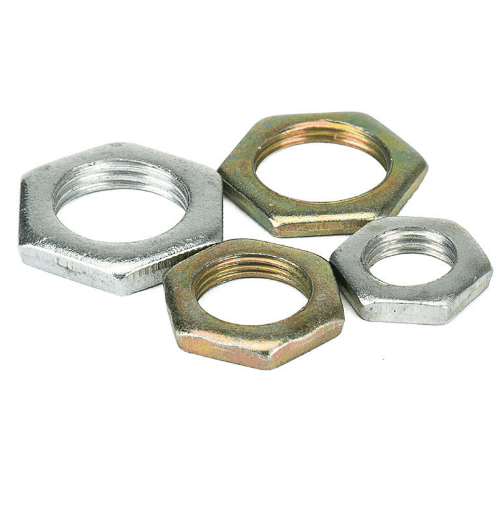

Product Description

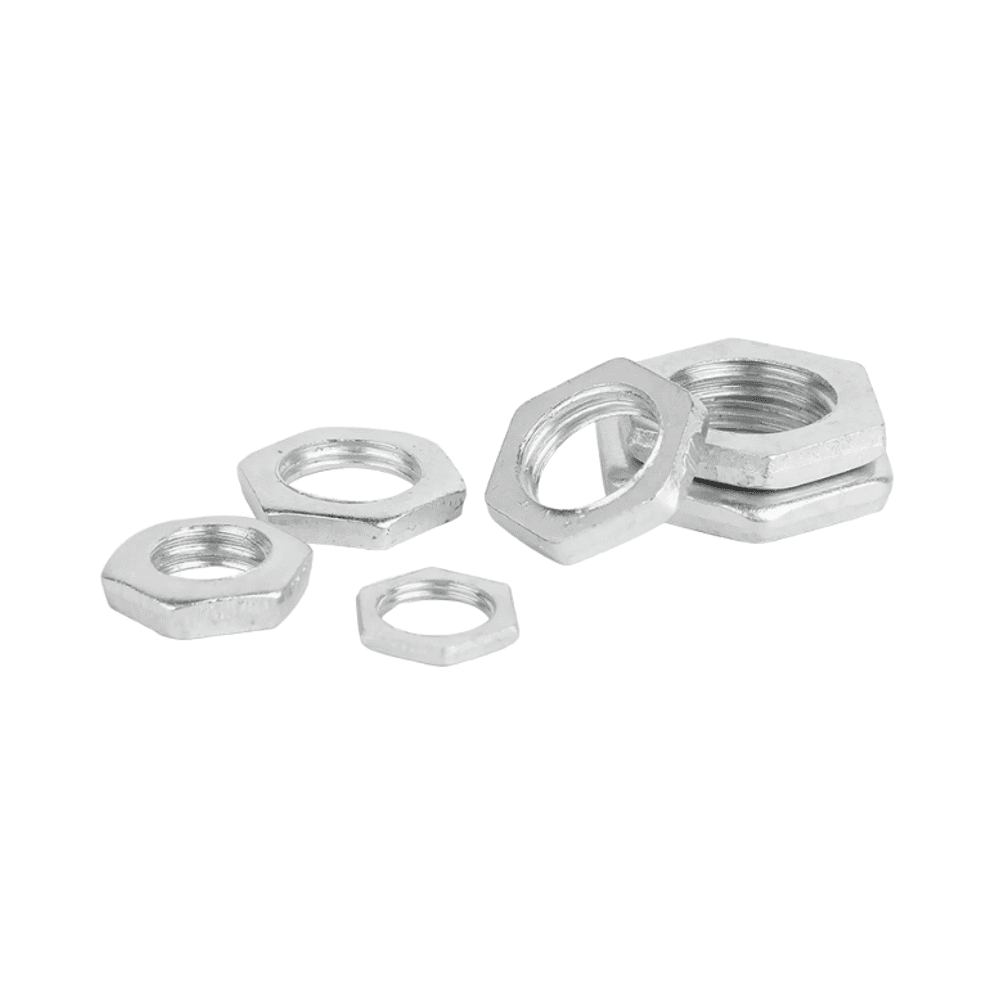

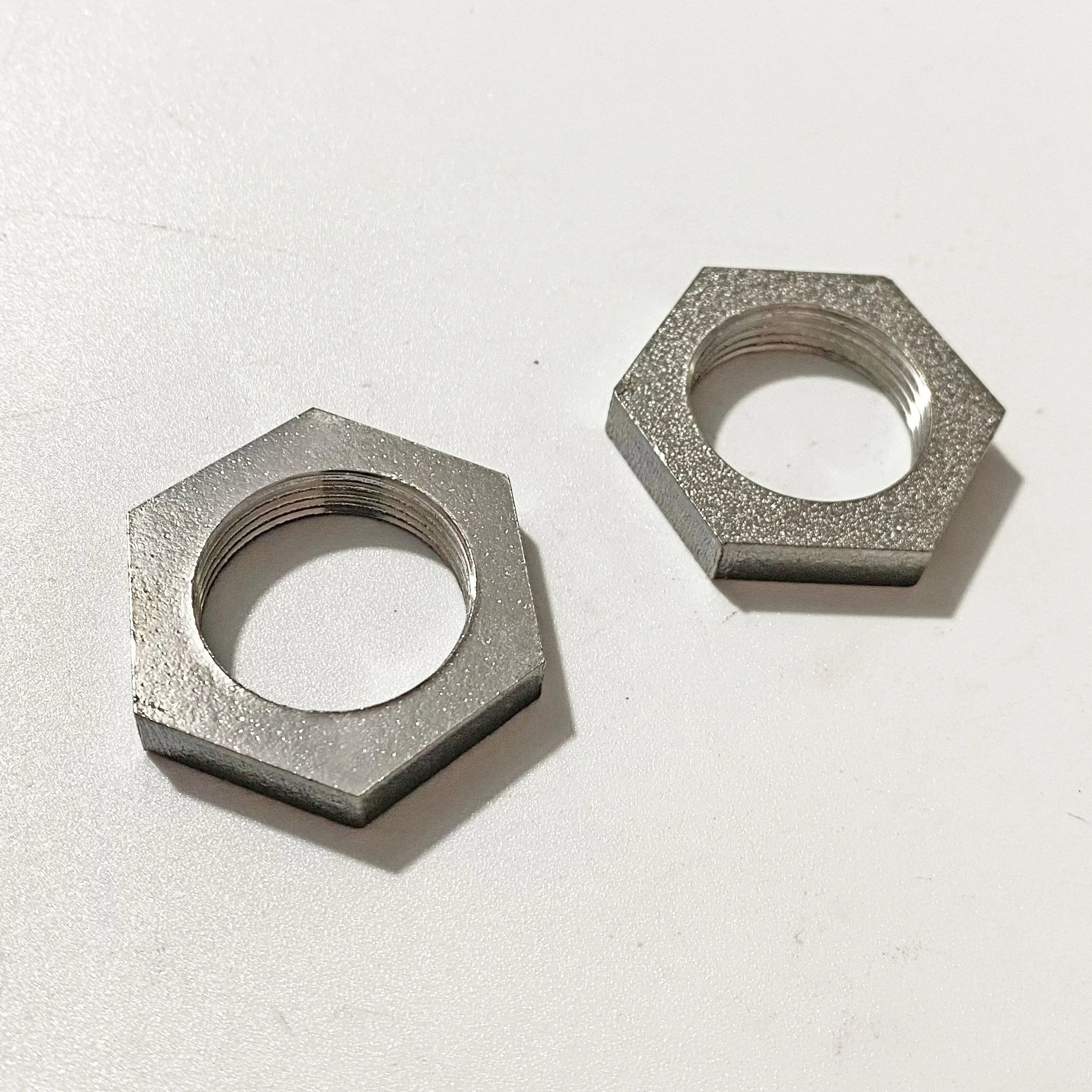

A low-profile, space-saving fastener designed for applications with limited clearance. Its reduced height maintains the same wrenching surface as a standard hex nut, ensuring secure fastening in tight spaces. Commonly used in automotive, machinery, and precision assemblies where a standard nut's thickness is impractical. Offers reliable performance with a streamlined design.

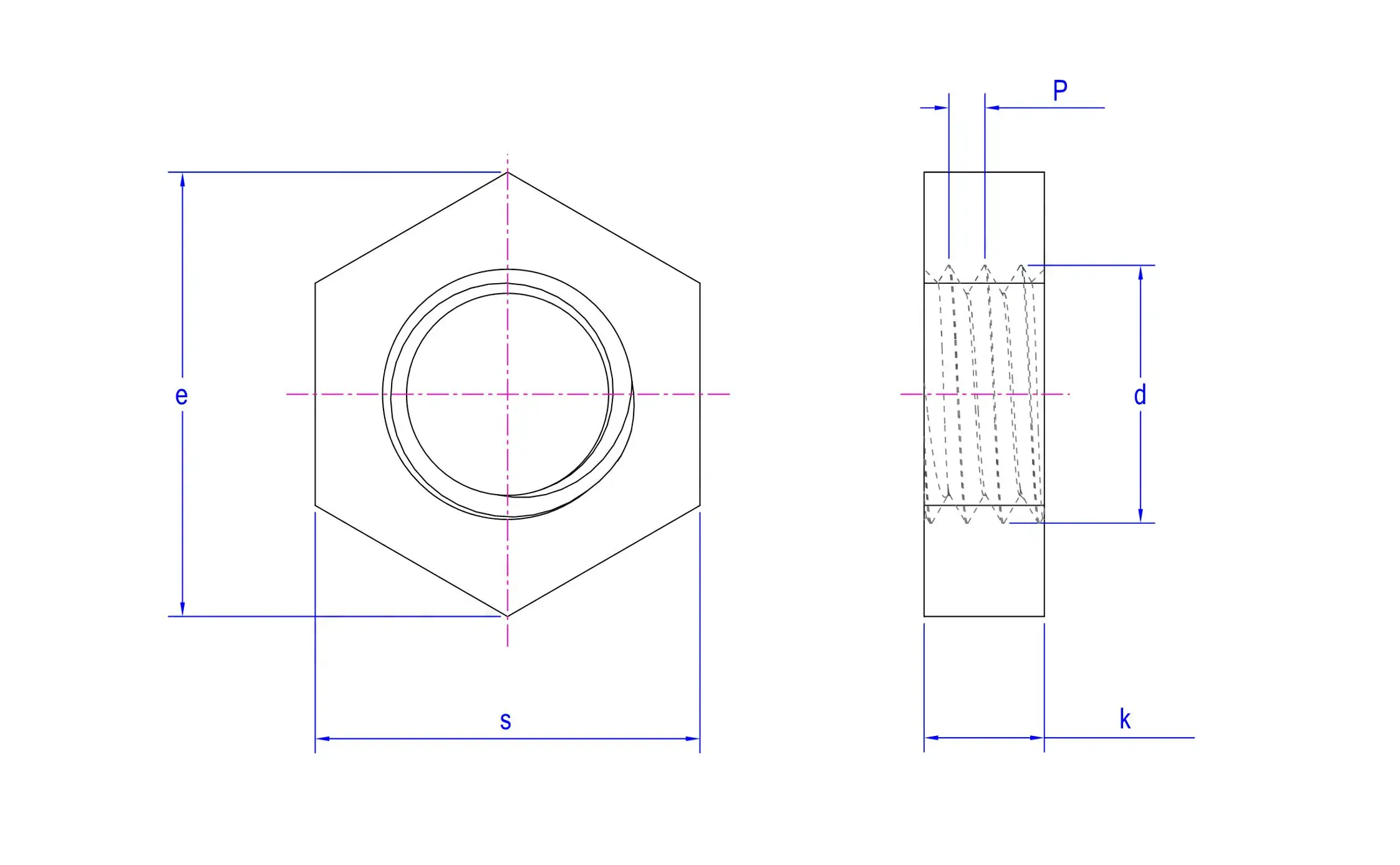

Specification
| mm | M1.6 | M2 | M2.5 | M3 | M3.5 | M4 | M5 | M6 | M8 |
| p | 0.35 | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 |
| e min | 3.28 | 4.18 | 5.31 | 5.88 | 6.44 | 7.5 | 8.63 | 10.89 | 14.2 |
| k max | 1 | 1.2 | 1.6 | 1.8 | 2 | 2.2 | 2.7 | 3.2 | 4 |
| k min | 0.75 | 0.95 | 1.35 | 1.55 | 1.75 | 1.95 | 2.45 | 2.9 | 3.7 |
| s max | 3.2 | 4 | 5 | 5.5 | 6 | 7 | 8 | 10 | 13 |
| s min | 2.9 | 3.7 | 4.7 | 5.2 | 5.7 | 6.64 | 7.64 | 9.64 | 12.57 |
We custom it totally according to your request.
For accurate price, please send us the drawing or samples pictures with size, we will quote you as soon as possible.
FAQ
Q1:How many coutries you already exported ?
A1:Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey,Jordan,etc.
Q2:How can l get some samples?
A2:Small samples in store and can provide the samples for free. Catalgue is available, most patternswe have ready samples in stock.Customized samples will take about 5-7days.
Q3:What is the delivery ?
A3:Sample order's delivery time is 5-7 days. Container orders are about 15-20 days
